Robotic Teleoperation Using VR (V0.9)
This project aims to create a VR teleopreable mobile service robot using ROS (Robotic operating system). Travel can often prove time-consuming, particularly when undertaken for mundane purposes. Why not use a proxy to travel from anywhere in an instant, Mai allows this. Complete physical tasks intuitively remotely using VR .
Body Panels
Mai now has new body panels that protect the internals form collision and damage. Each panel has been designed to use the V-slot extrusion profile for easy and secure mounting.
Edge Software Auto Launch (Pre-Alpha)
Before this update each node / microservice within the ROS middleware had to be launched manually, now on boot Mai starts all these services allowing seamless operation once the VR client is connected.
Meta API Integrated For Use With New Oculus Hardware And Meta Headsets (Pre-Alpha)
As part of the new client software the Quest2 has been the main focus for the new configuration. V0.6 is fully compatable with the Rift and Rift S.
Change Log
Lift + has now been added as a mapping to the Quest 2 & 3.
The interface for viewing mai's environment has been re-designed.
New Interface for the status of mai's joint angles and positions (Debug).
Robotic Teleoperation Using VR (V0.6)
Mai has been developed using a Raspberry pi 4, arduino uno microcontroller Python and C++ implemented within Linux (Distribution: Ubuntu server in headless operation) and the middleware ROS.
Mai has been made as an artifact for my computer science degree at the University of Portsmouth, the development of mai is now complete see below for details including my final undergraduate dissertation report.

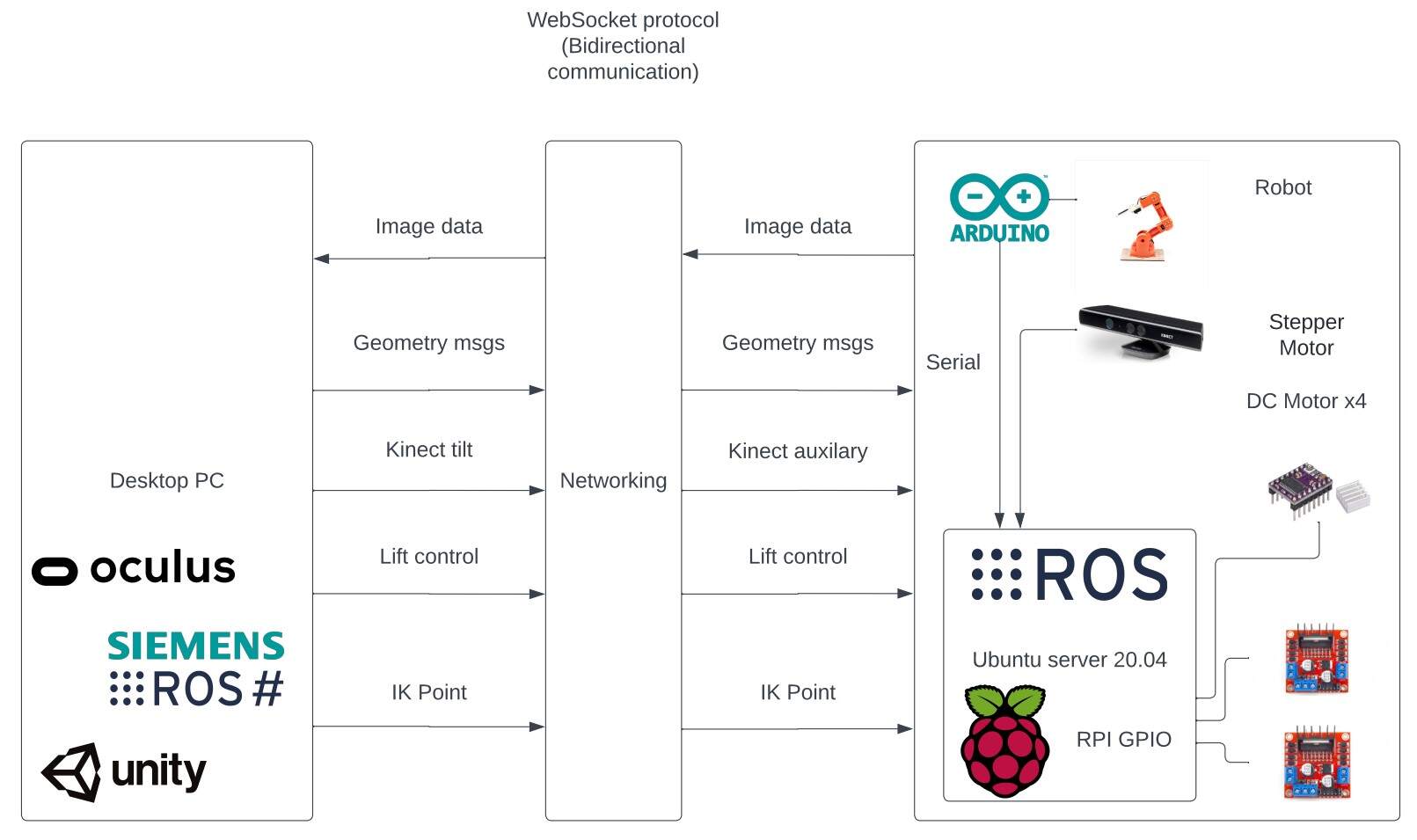

The high level system architecture is as follows. The diagram shows the ROS Topics (arrows) used for communication via the WebSocket protocol. GPIO and serial are used for communication within in the robot control unit.
Hardware schematic and parts list

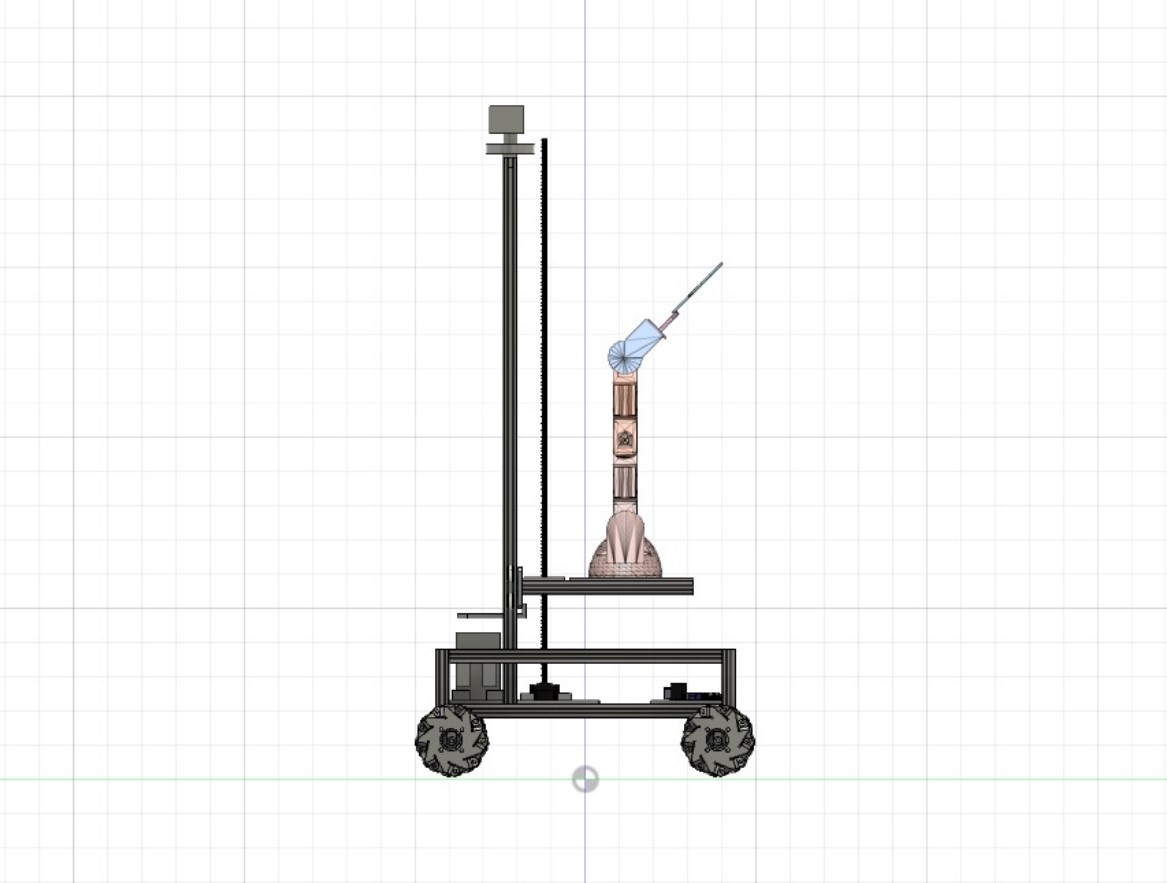

Front View

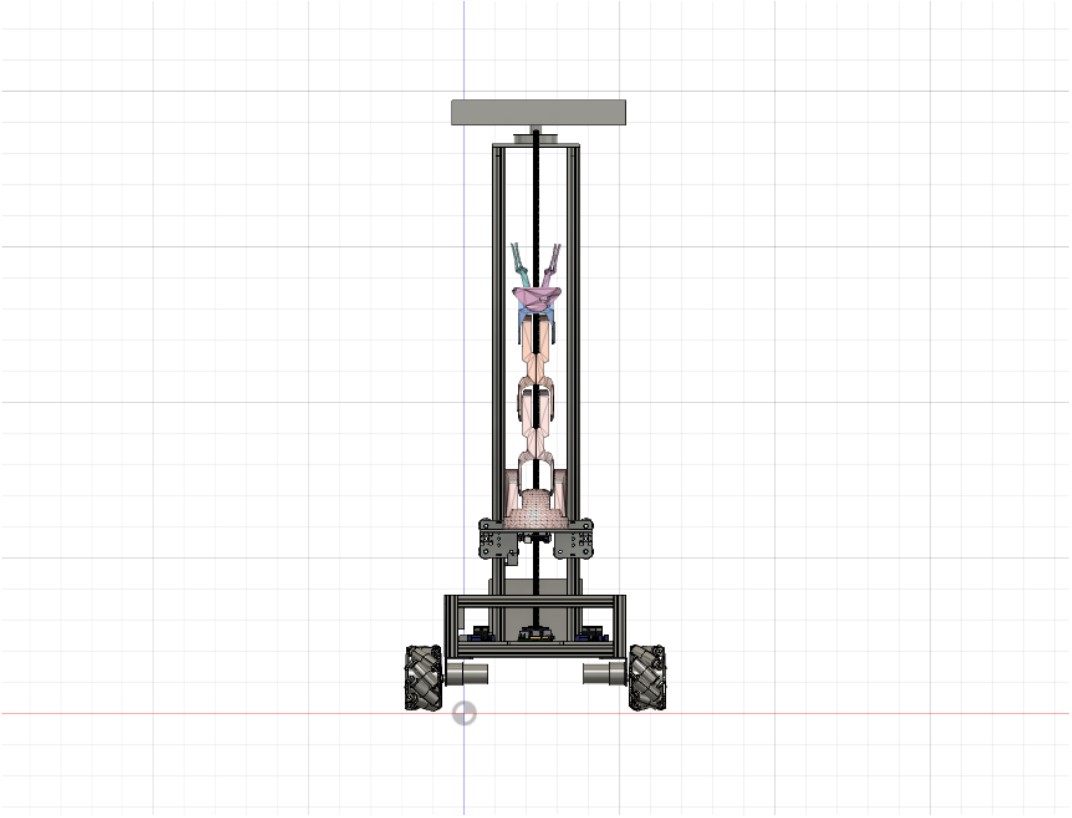

Rear View
3D View
Mai's development was a success the final artefact is able to be remotely controlled using a VR interface, although this project was a success in generating a complete and working artefact it is however limited in its function. Due to the low-grade hardware integrated the overall system is far from perfect whilst the final prototype is usable its not the most refined and accurate. For example the lack of encoded motors drivetrain system, suspension or stable omnidirectional wheel mounting configuration causes drifting in movement and an overall noisy actuation. The arm is more stable as its a pre-purchased unit although its low torque plastic construction and maximum load are all limiting factors to its operation as intended.
The final artefact works very well as a proof of concept. This project will be rebooted in april 2023 for a new development cycle focused on improving the aspects discussed above. If you would like to get involved in the project please feel free to download the source code add this to your ROS Neotic Catkin workspace to get started. The report details all the dependencies required in chapter six.
